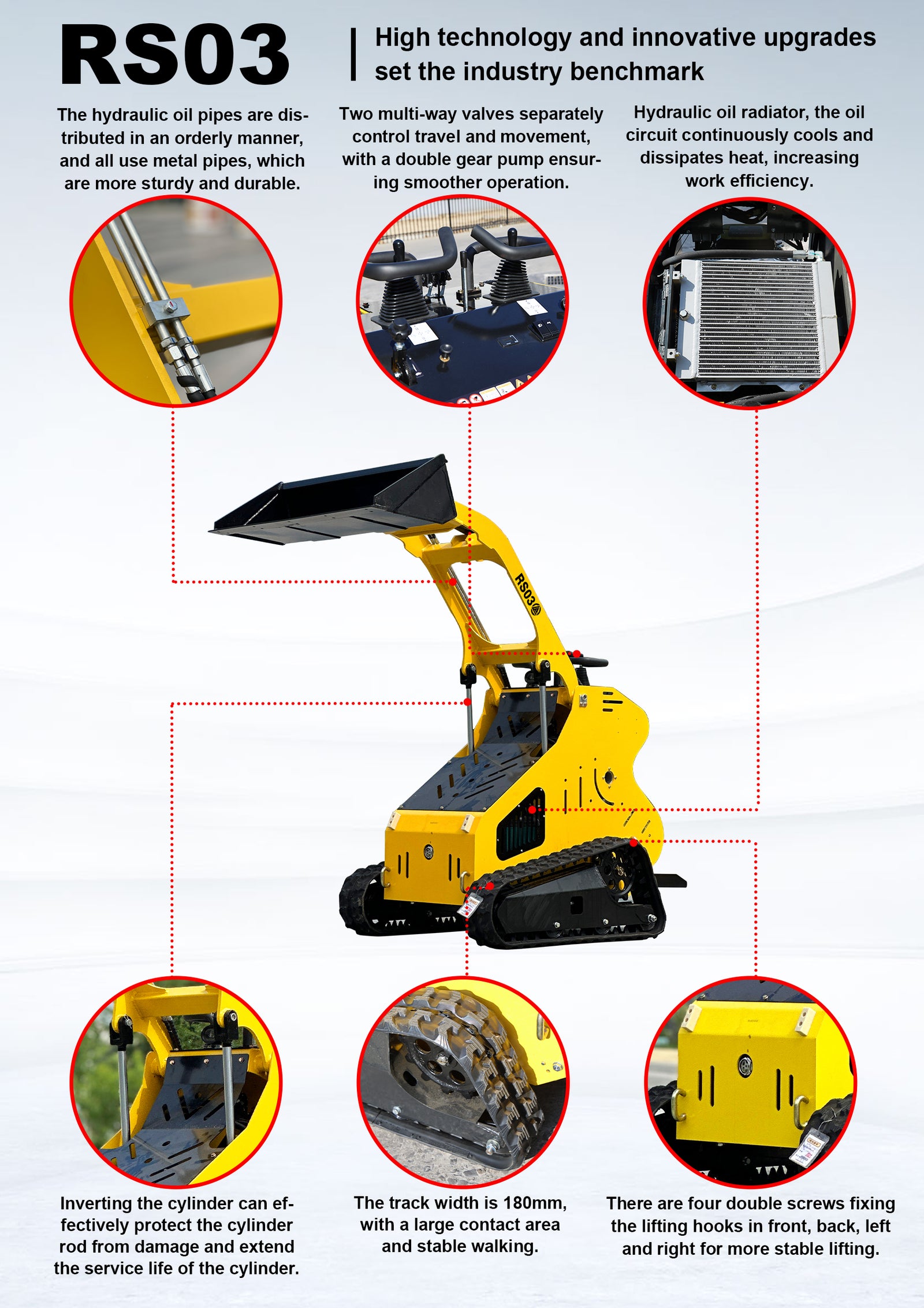

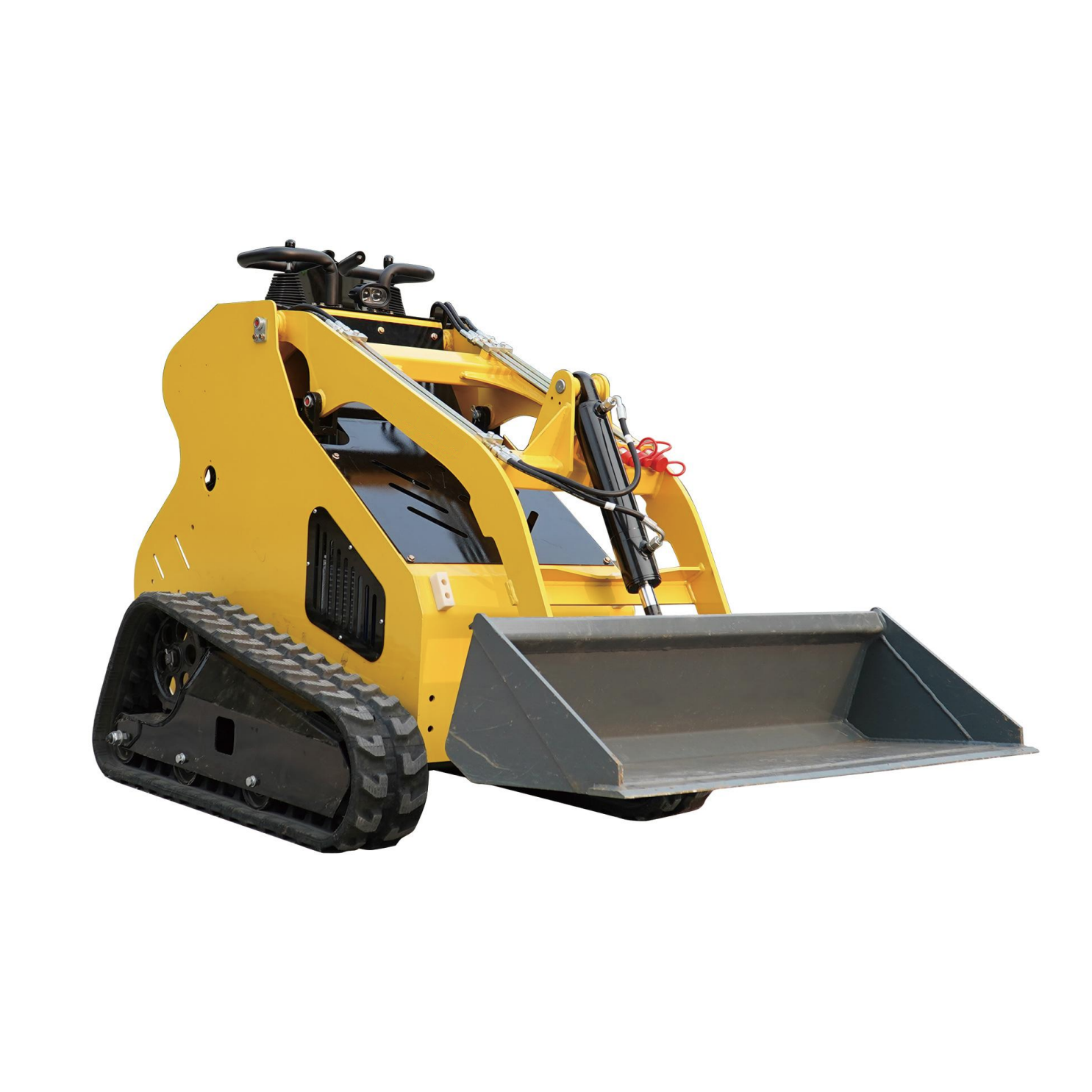

RS03 Skid-Steer Loader

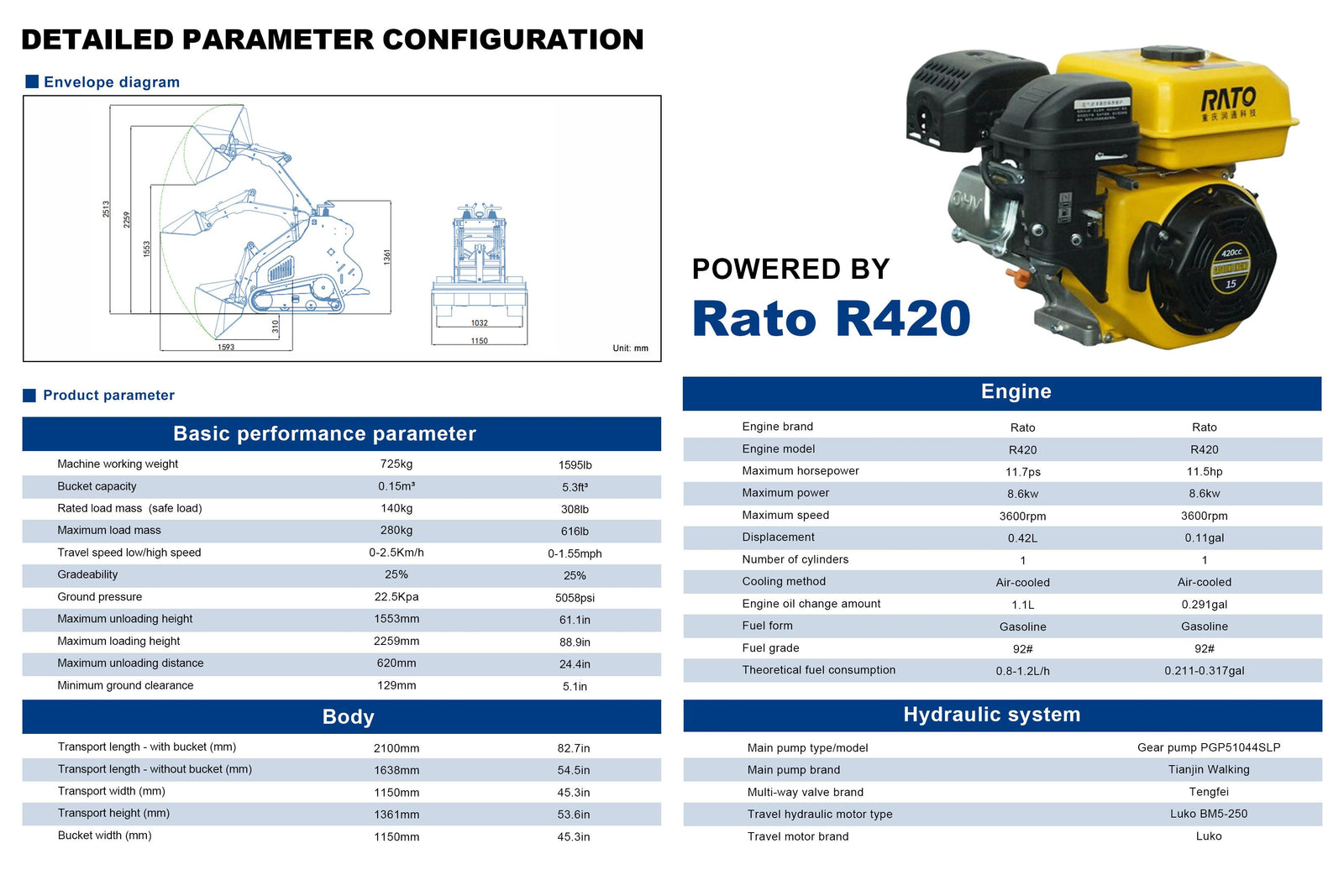

| Basic performance parameter | ||
|---|---|---|
| Machine working weight | 725kg | 1595lb |
| Bucket capacity | 0.15m³ | 5.3ft³ |
| Rated load mass (safe load) | 140kg | 308lb |
| Maximum load mass | 280kg | 616lb |
| Travel speed low/high speed | 0-2.5Km/h | 0-1.55mph |
| Gradeability | 25% | 25% |
| Ground pressure | 22.5Kpa | 5058psi |
| Maximum unloading height | 1553mm | 61.1in |
| Maximum loading height | 2259mm | 88.9in |
| Maximum unloading distance | 620mm | 24.4in |
| Minimum ground clearance | 129mm | 5.1in |
| Body | ||
| Transport length - with bucket (mm) | 2100mm / 82.7in | |
| Transport length - without bucket (mm) | 1638mm / 54.5in | |
| Transport width (mm) | 1150mm / 45.3in | |
| Transport height (mm) | 1361mm / 53.6in | |
| Bucket width (mm) | 1150mm / 45.3in | |

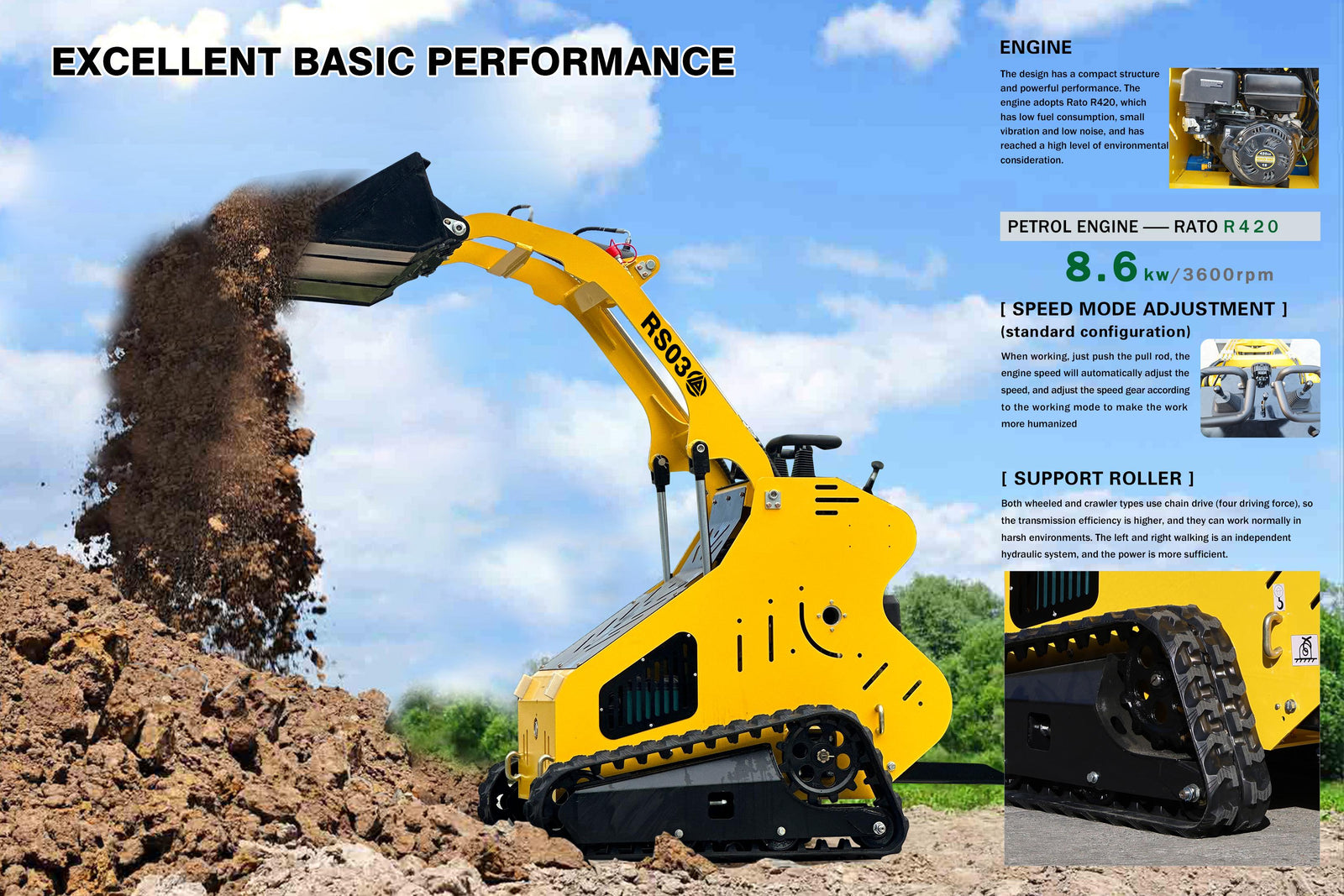

| Engine | ||
| Engine brand | Rato | |
| Engine model | R420 | |
| Maximum horsepower | 11.7ps | 11.5hp |
| Maximum power | 8.6kw | |
| Maximum speed | 3600rpm | |
| Displacement | 0.42L | 0.11gal |
| Number of cylinders | 1 | |
| Cooling method | Air-cooled | |
| Engine oil change amount | 1.1L | 0.291gal |
| Fuel form | Gasoline | |
| Fuel grade | 92# | |
| Theoretical fuel consumption | 0.8-1.2L/h | |

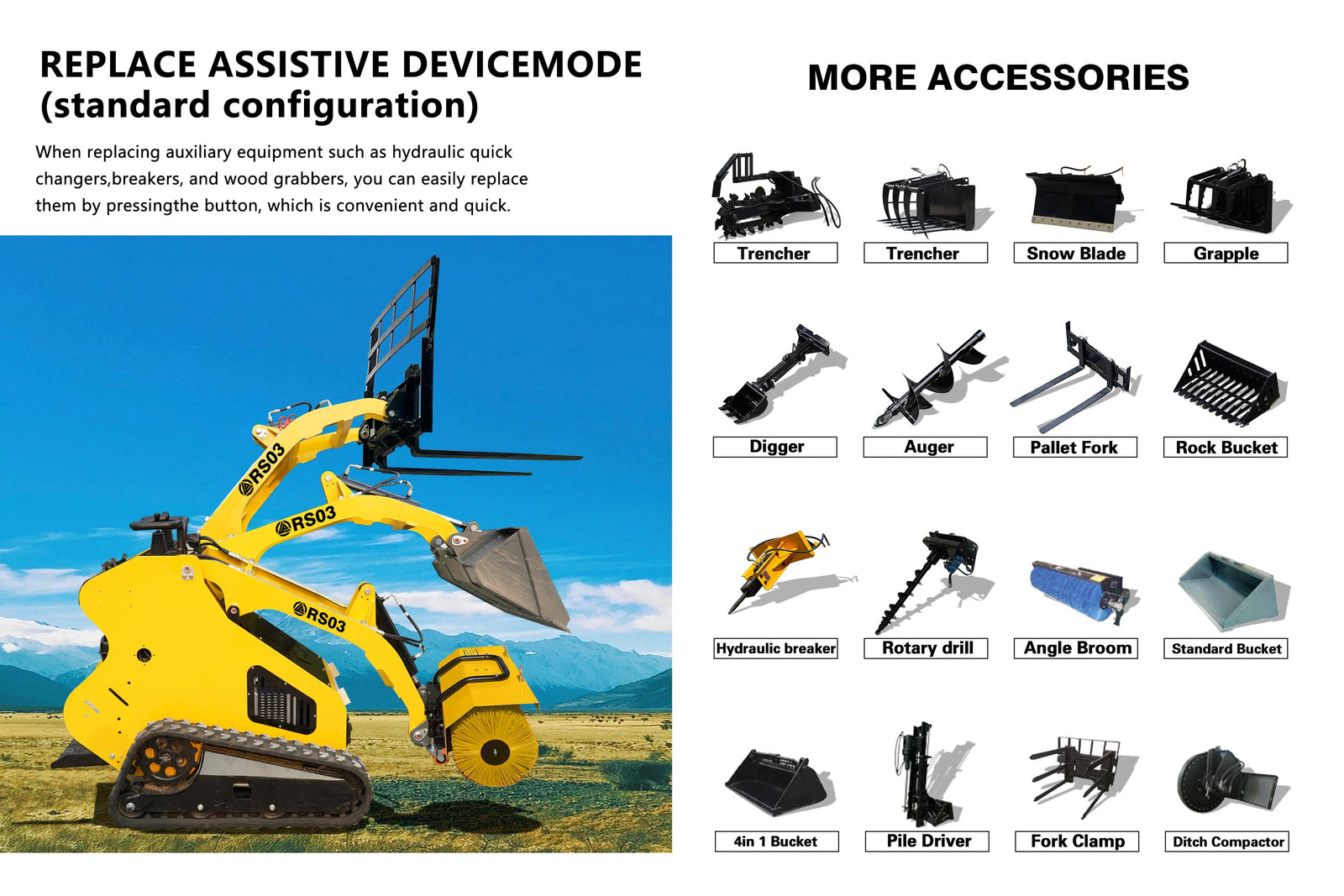

Need tools for different tasks? Ask us about our collection of attatchments and accessories.
