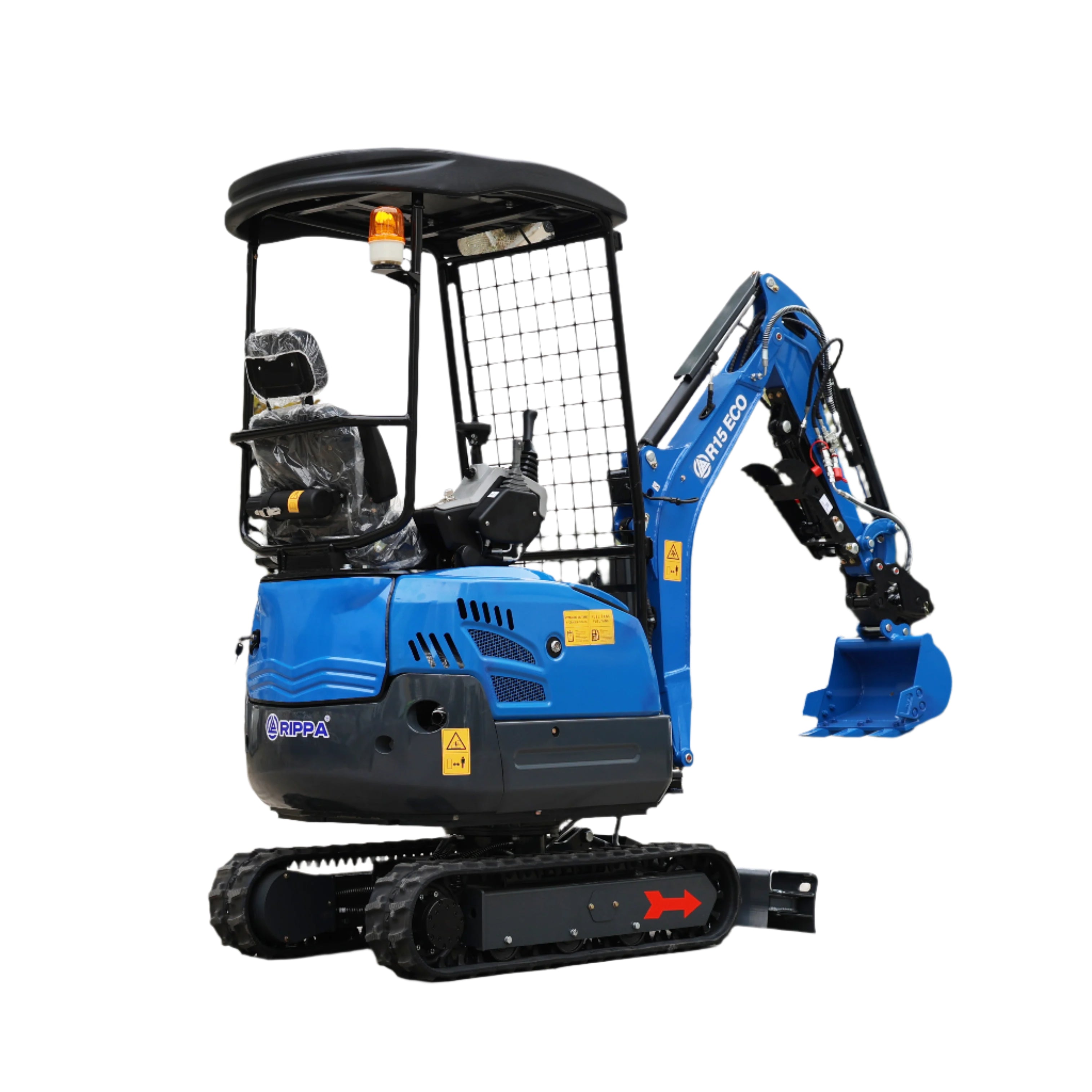

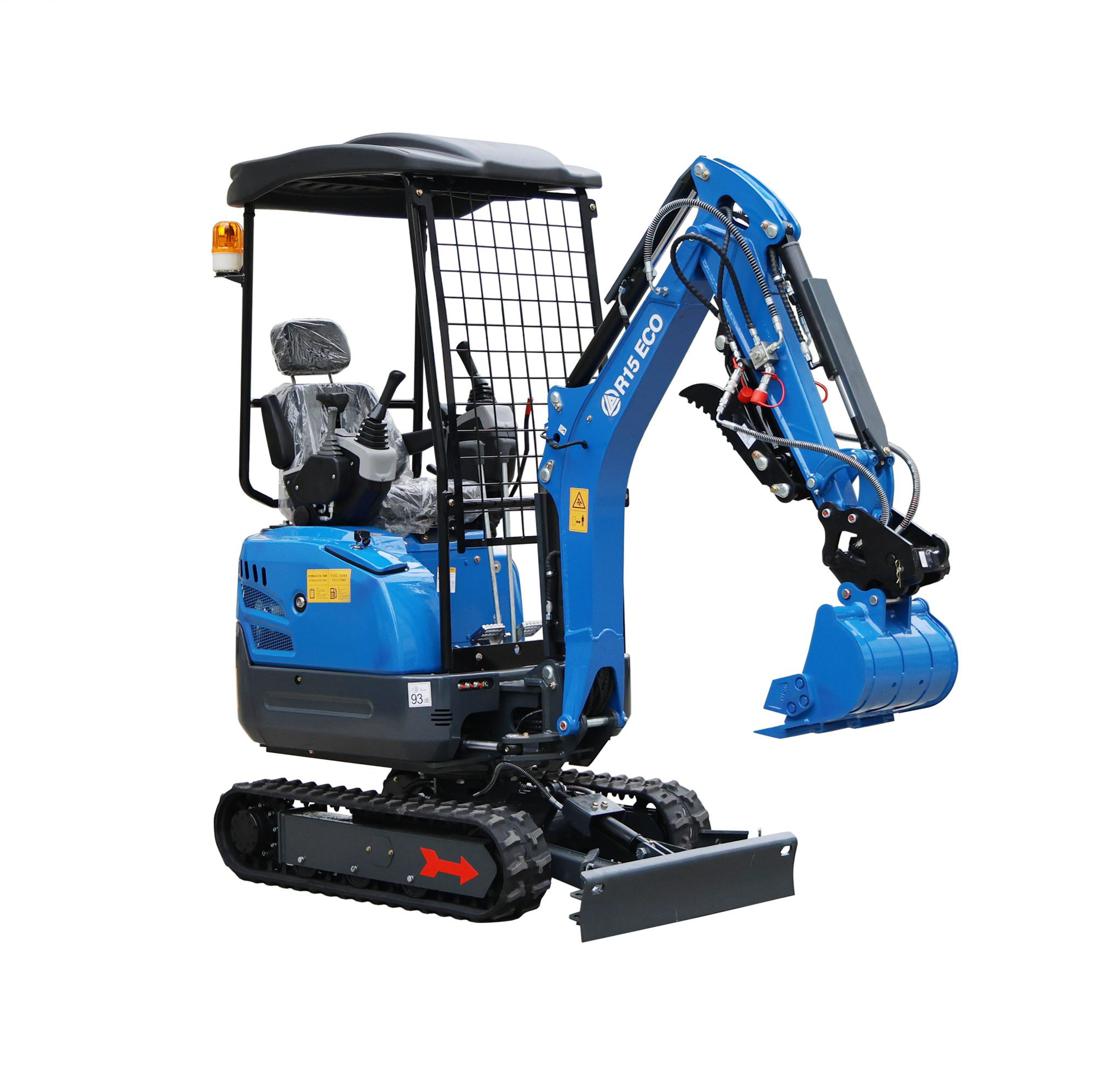

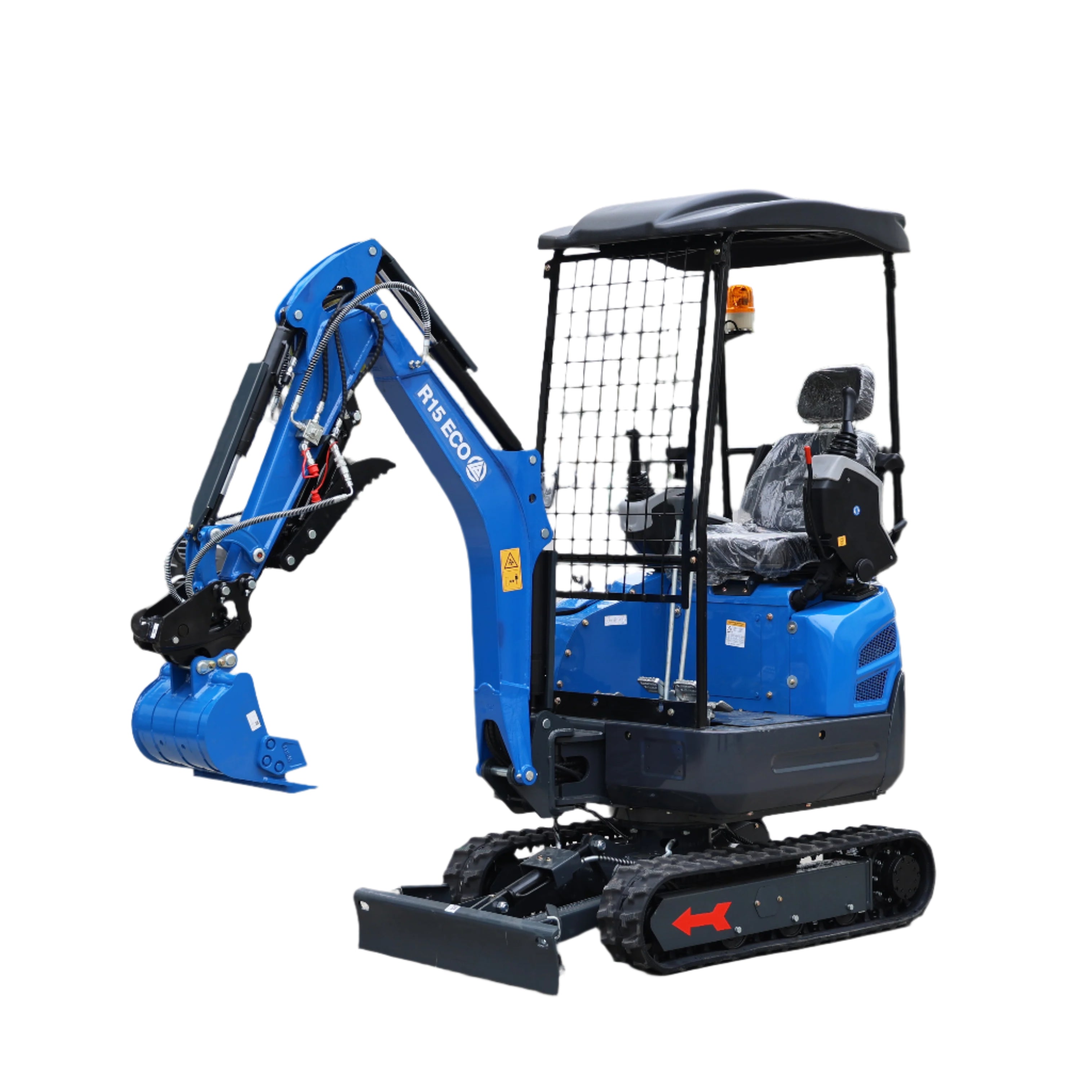

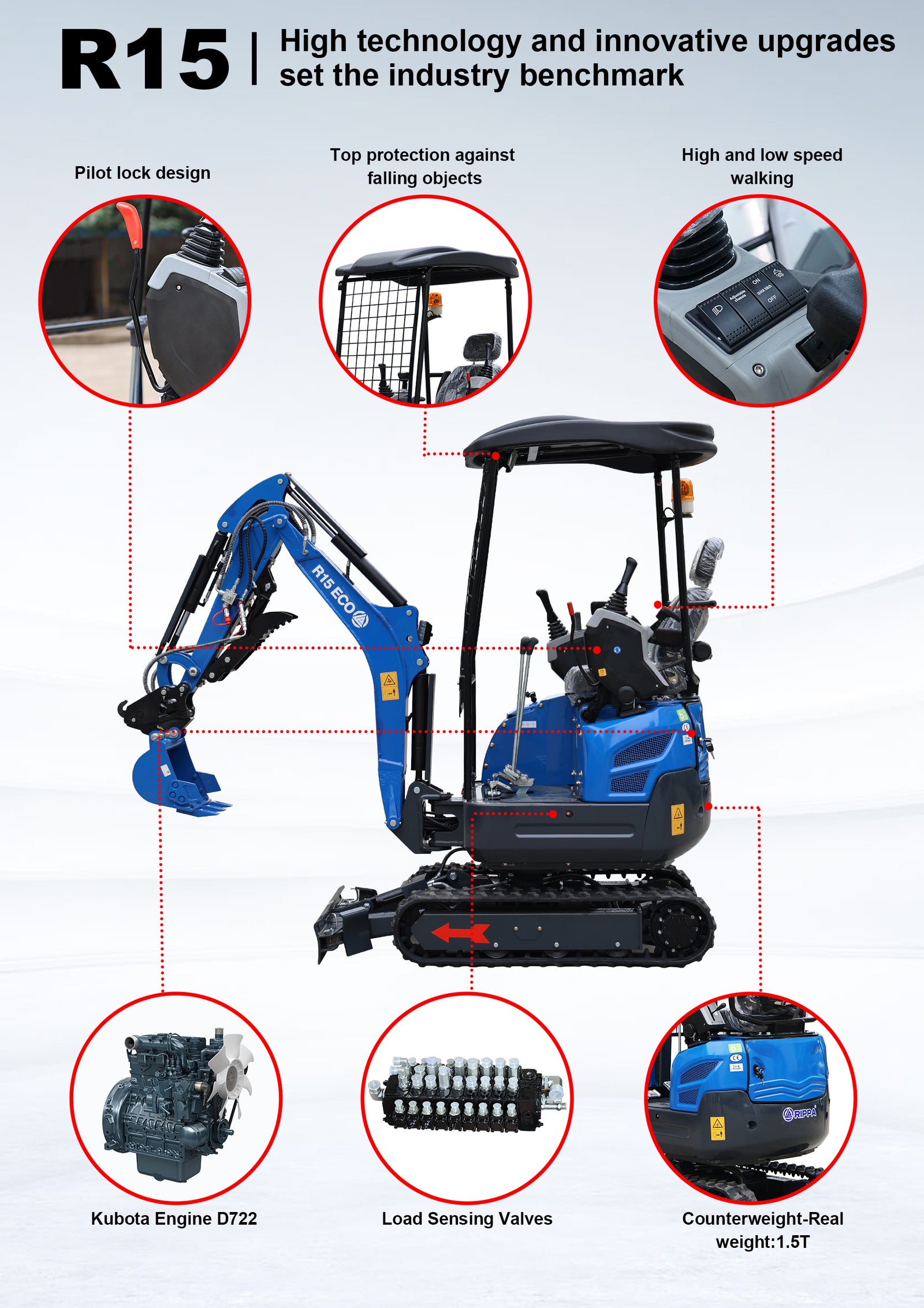

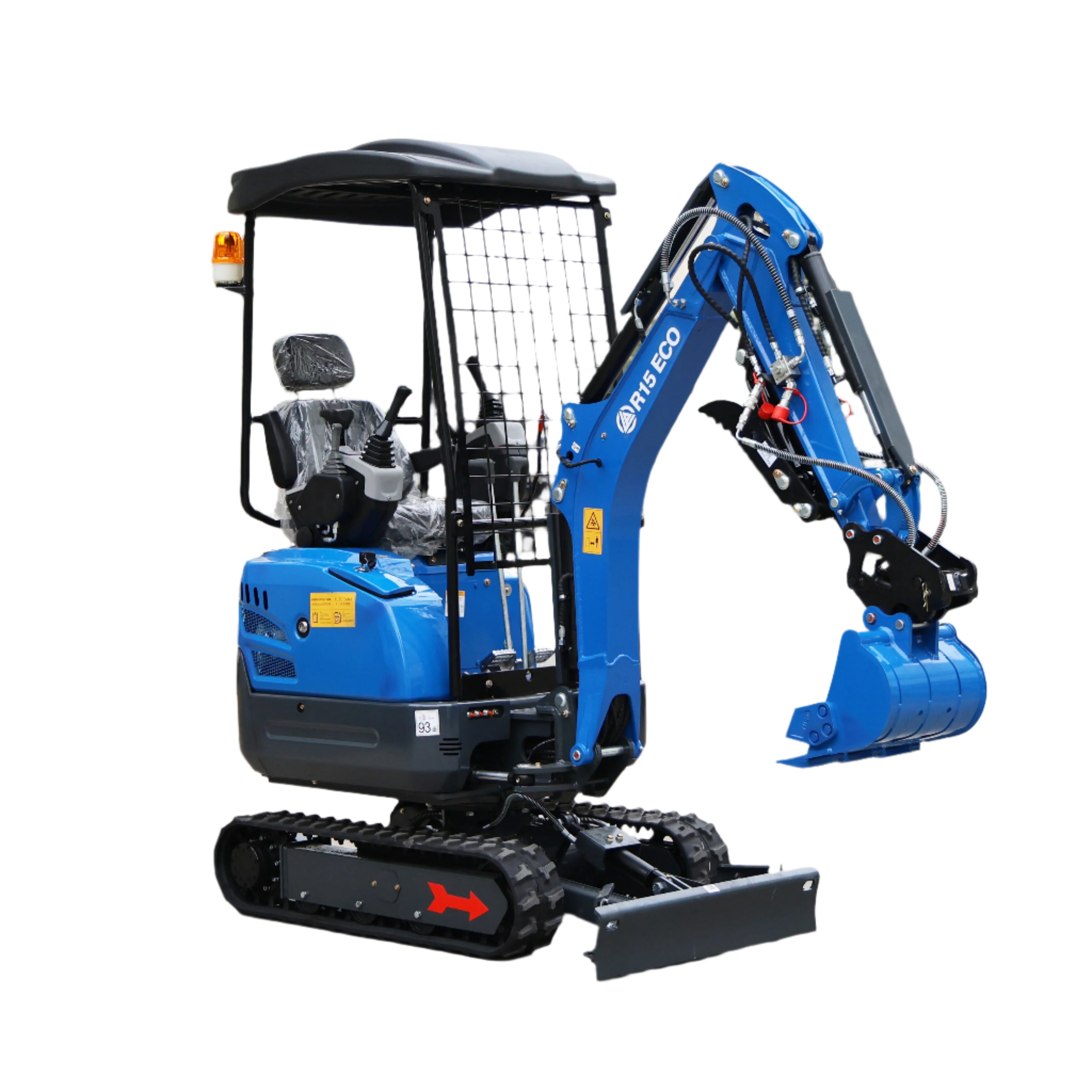

R15 ECO Mini Excavator

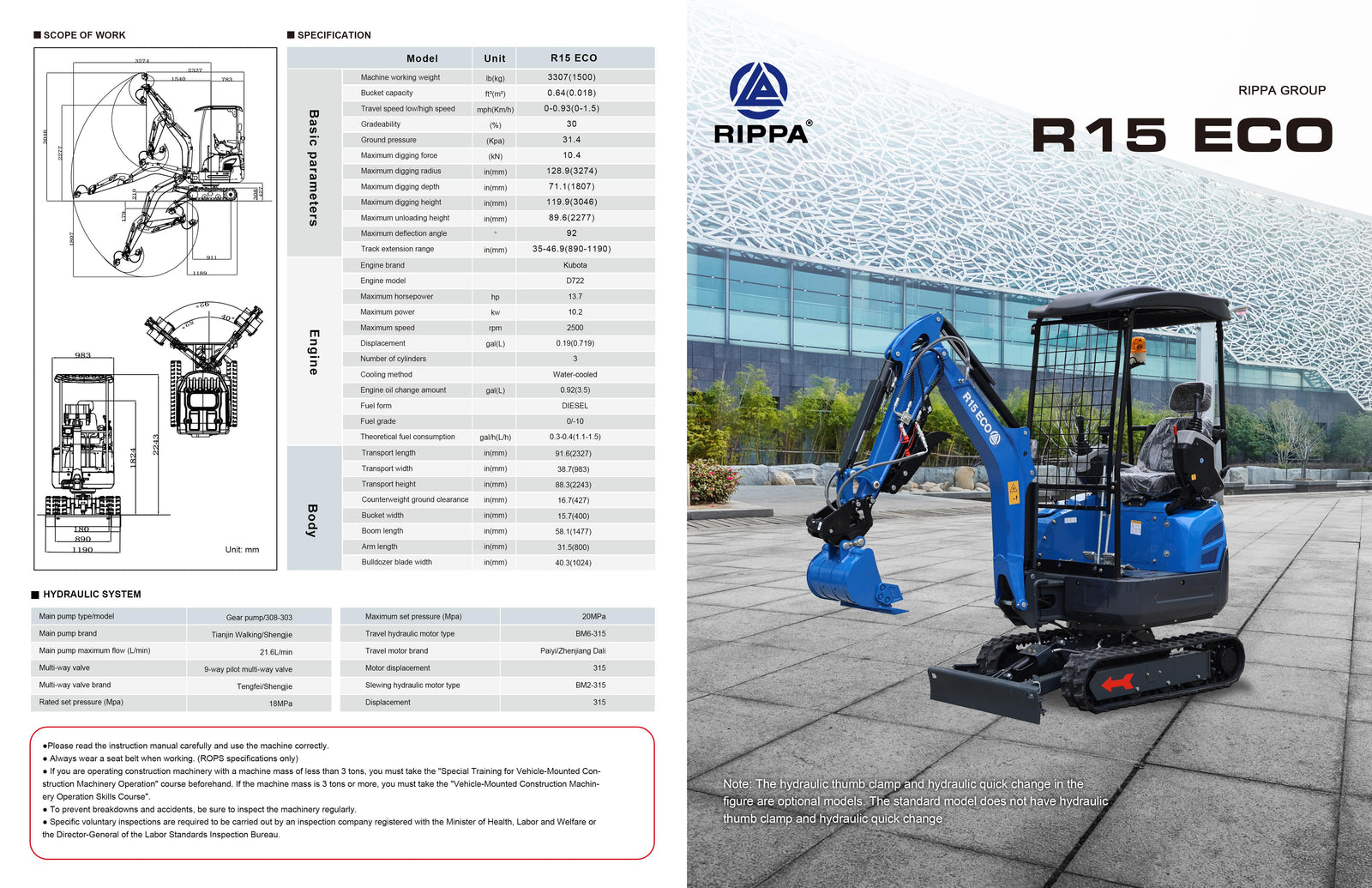

| Basic Parameters | ||
| Machine working weight | lb(kg) | 3307 (1500) |
| Bucket capacity | ft³(m³) | 0.64 (0.018) |
| Travel speed low/high speed | mph(Km/h) | 0-0.93 (0-1.5) |
| Gradeability | % | 30 |
| Ground pressure | KPa | 31.4 |
| Maximum digging force | kN | 10.4 |
| Maximum digging radius | in(mm) | 128.9 (3274) |
| Maximum digging depth | in(mm) | 71.1 (1807) |
| Maximum digging height | in(mm) | 119.9 (3046) |
| Maximum unloading height | in(mm) | 89.6 (2277) |
| Maximum deflection angle | ° | 92 |

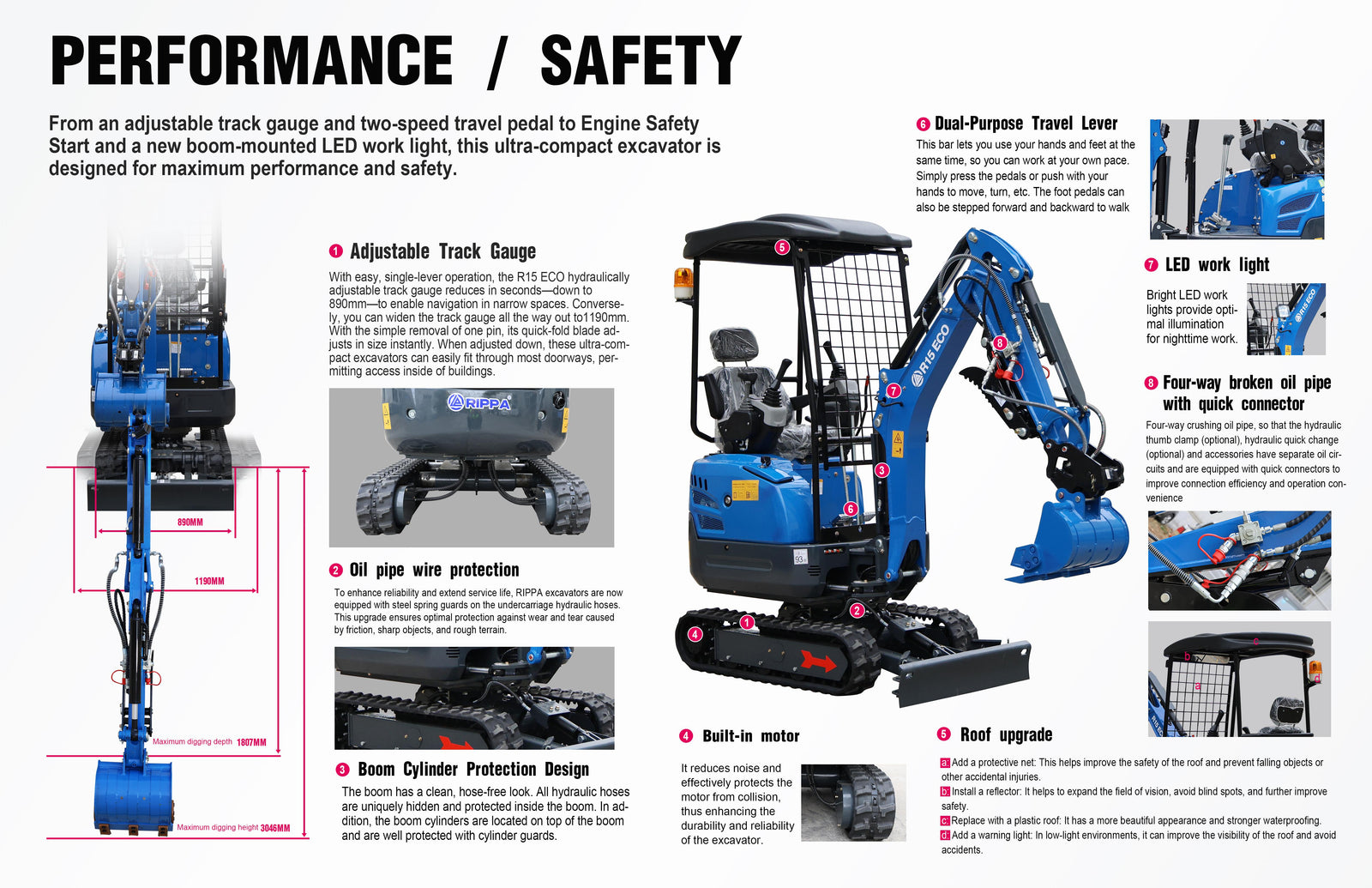

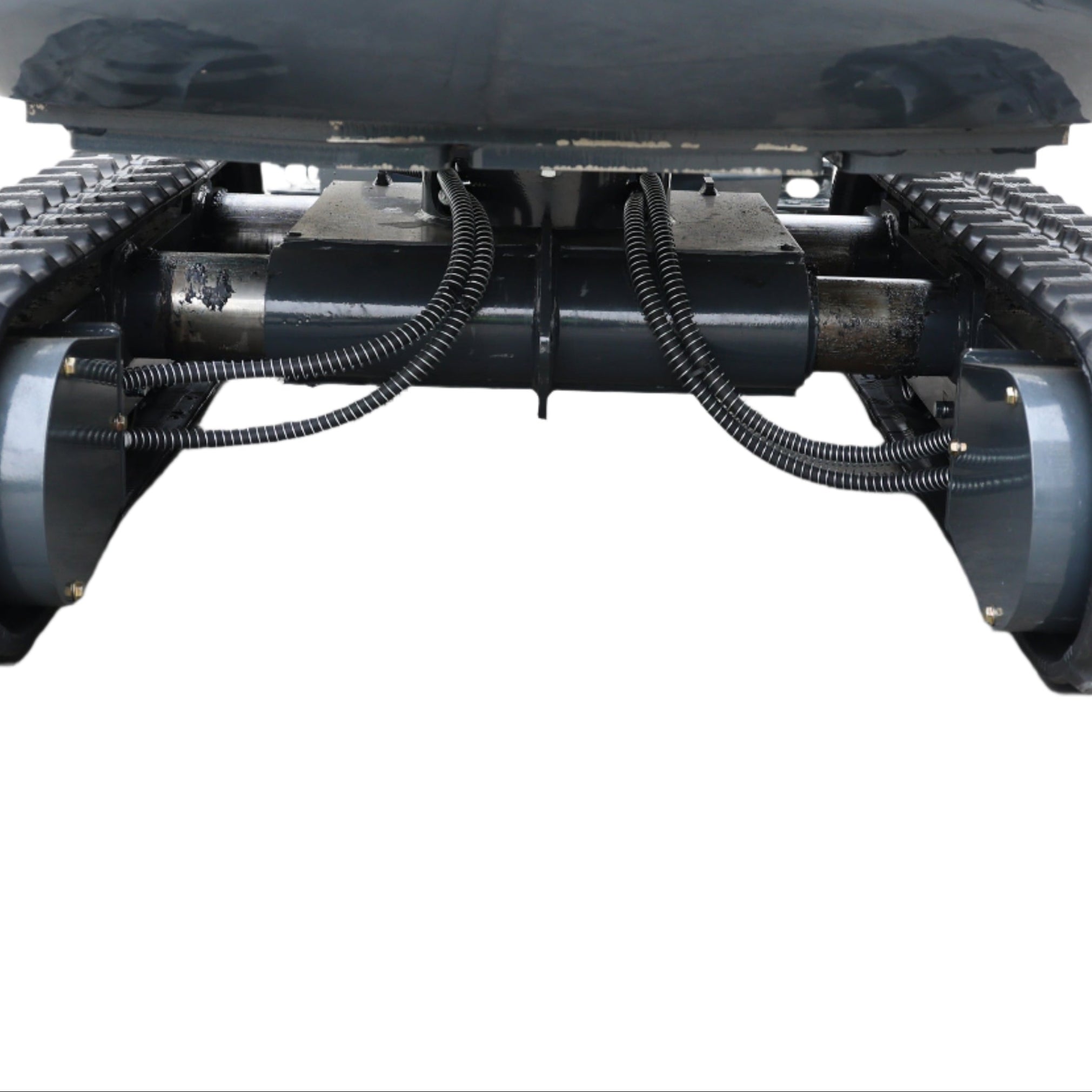

| Track extension range | in(mm) | 35-46.9 (890-1190) |

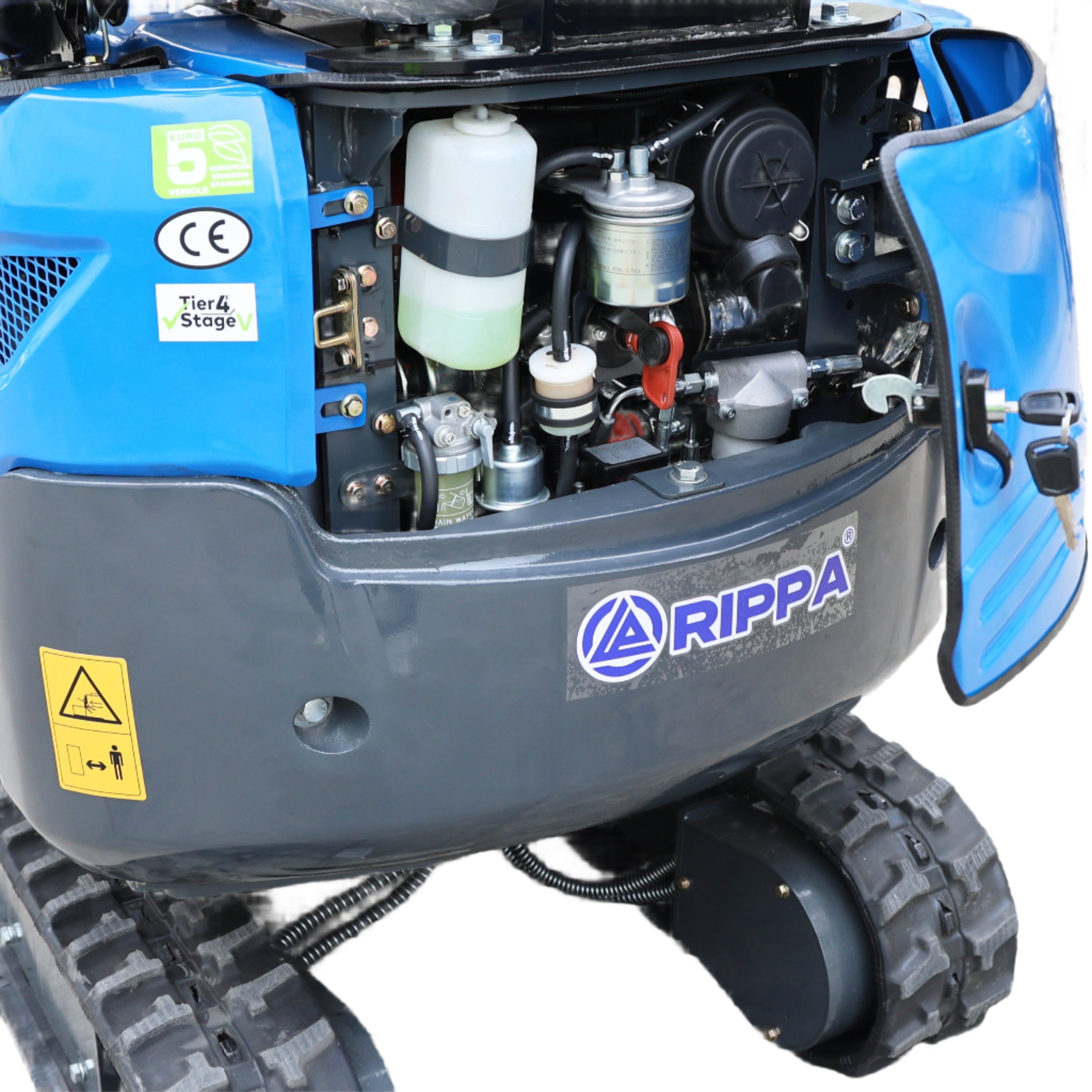

| Engine | ||
| Engine brand | - | Kubota |
| Engine model | - | D722 |
| Maximum horsepower | hp | 13.7 |
| Maximum power | kw | 10.2 |
| Maximum speed | rpm | 2500 |
| Displacement | gal(L) | 0.19 (0.719) |
| Number of cylinders | - | 3 |
| Cooling method | - | Water-cooled |
| Engine oil change amount | gal(L) | 0.92 (3.5) |
| Fuel form | - | Diesel |
| Fuel grade | - | 0/-10 |
| Theoretical fuel consumption | gal/h(L/h) | 0.3-0.4 (1.1-1.5) |
| Body | ||
| Transport length | in(mm) | 91.6 (2327) |
| Transport width | in(mm) | 38.7 (983) |
| Transport height | in(mm) | 88.3 (2243) |
| Counterweight ground clearance | in(mm) | 16.7 (427) |
| Bucket width | in(mm) | 15.7 (400) |
| Boom length | in(mm) | 58.1 (1477) |
| Arm length | in(mm) | 31.5 (800) |
| Bulldozer blade width | in(mm) | 40.3 (1024) |

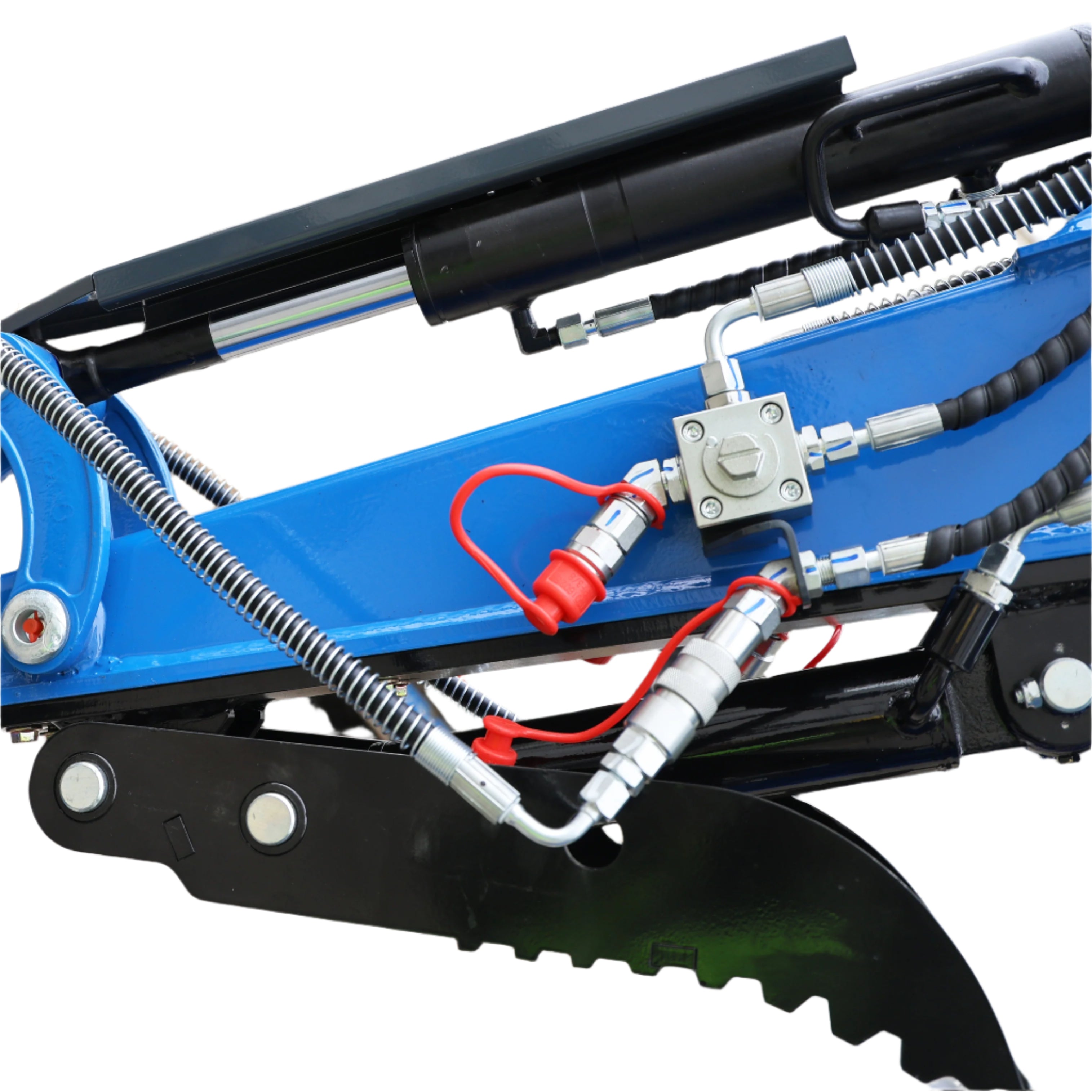

| Hydraulic System | ||
| Main pump type/model | Gear pump/308-303 | |
| Main pump brand | Tianjin Walking/Shengjie | |
| Main pump maximum flow | 21.6L/min | |
| Multi-way valve | 9-way pilot multi-way valve | |
| Multi-way valve brand | Tengfei/Shengjie | |
| Rated set pressure | 18MPa | |
| Maximum set pressure | 20MPa | |
| Travel hydraulic motor type | BM6-315 | |
| Travel motor brand | Paiyi/Zhenjiang Dali | |
| Motor displacement | 315 | |
| Slewing hydraulic motor type | BM2-315 | |
